An electromagnetic pulse (EMP), also sometimes called a transient electromagnetic disturbance, is a short burst of electromagnetic energy. Such a pulse's origination may be a natural occurrence or man-made and can occur as a radiated, electric or magnetic field or a conducted electric current, depending on the source.
​
EMP interference is generally disruptive or damaging to electronic equipment, and at higher energy levels a powerful EMP event such as a lightning strike can damage physical objects such as buildings and aircraft structures. The management of EMP effects is an important branch of electromagnetic compatibility (EMC) engineering.
​
Weapons have been developed to create the damaging effects of high-energy EMP. These are typically divided into nuclear and non-nuclear devices. Such weapons, both real and fictional, have become known to the public by means of popular culture.
General characteristics
An electromagnetic pulse is a short burst of electromagnetic energy. Its short duration means that it will be spread over a range of frequencies.
Pulses are typically characterized by:
-
The type of energy (radiated, electric, magnetic or conducted).
-
The range or spectrum of frequencies present.
-
Pulse waveform: shape, duration and amplitude.
​
The last two of these, the frequency spectrum and the pulse waveform, are interrelated via the Fourier transform and may be seen as two different ways of describing the same pulse.
​
Types of energy
Main article: Electromagnetism
EMP energy may be transferred in any of four forms:
​
A pulse of any one form of electromagnetic energy will always be accompanied by the other forms, however in a typical pulse one form will dominate.
In general, only radiation acts over long distances, with the others acting over short distances. There are a few exceptions, such as a solar magnetic flare.
​
Frequency ranges
A pulse of electromagnetic energy typically comprises many frequencies from DC (zero Hz) to some upper limit depending on the source. The range defined as EMP, sometimes referred to as "DC to daylight", excludes the highest frequencies comprising the optical (infrared, visible, ultraviolet) and ionizing (X and gamma rays) ranges.
​
Some types of EMP events can leave an optical trail, such as lightning and sparks, but these are side effects of the current flow through the air and are not part of the EMP itself.
​
Pulse waveforms
The waveform of a pulse describes how its instantaneous amplitude (field strength or current) changes over time. Real pulses tend to be quite complicated, so simplified models are often used. Such a model is typically shown either as a diagram or as a mathematical equation.
Rectangular pulse
Double exponential pulse
Damped sinewave pulse
​
Most pulses have a very sharp leading edge, building up quickly to their maximum level. The classic model is a double-exponential curve which climbs steeply, quickly reaches a peak and then decays more slowly. However, pulses from a controlled switching circuit often approximate the form of a rectangular or "square" pulse.
​
In a pulse train, such as from a digital clock circuit, the waveform is repeated at regular intervals.
EMP events usually induce a corresponding signal in the victim equipment, due to coupling between the source and victim. Coupling usually occurs most strongly over a relatively narrow frequency band, leading to a characteristic damped sine wave signal in the victim. Visually it is shown as a high frequency sine wave growing and decaying within the longer-lived envelope of the double-exponential curve. A damped sinewave typically has much lower energy and a narrower frequency spread than the original pulse, due to the transfer characteristic of the coupling mode. In practice, EMP test equipment often injects these damped sinewaves directly rather than attempting to recreate the high-energy threat pulses.
​
Effects
Minor EMP events, and especially pulse trains, cause low levels of electrical noise or interference which can affect the operation of susceptible devices. For example, a common problem in the mid-twentieth century was interference emitted by the ignition systems of gasoline engines, which caused radio sets to crackle and TV sets to show stripes on the screen. Laws were introduced to make vehicle manufacturers fit interference reducing suppression systems.
​
At a high voltage level an EMP can induce a spark, for example from an electrostatic discharge when fuelling a gasoline-engined vehicle. Such sparks have been known to cause fuel-air explosions and precautions must be taken to prevent them.[1]
A large and energetic EMP can induce high currents and voltages in the victim unit, temporarily disrupting its function or even permanently damaging it.
​
A very large EMP event such as a lightning strike is also capable of damaging objects such as trees, buildings and aircraft directly, either through heating effects or the disruptive effects of the very large magnetic field generated by the current. An indirect effect can be electrical fires caused by heating. Most engineered structures and systems require some form of protection against lightning to be designed in.
​
The damaging effects of high-energy EMP have led to the introduction of EMP weapons, from tactical missiles with a small radius of effect to nuclear bombs tailored for maximum EMP effect over a wide area.
​
​
Types of EMP
An EMP arises where the source emits a short-duration pulse of energy. The energy is usually broadband by nature, although it often excites a relatively narrow-band damped sine wave response in the victim. Some types are generated as repetitive and regular pulse trains.
​
Different types of EMP arise from natural, man-made and weapons effects.
​
Types of natural EMP event include:
-
Lightning electromagnetic pulse (LEMP). The discharge is typically an initial huge current flow, at least mega-amps, followed by a train of pulses of decreasing energy.
-
Electrostatic discharge (ESD), as a result of two charged objects coming into close proximity or even contact.
-
Meteoric EMP. The discharge of electromagnetic energy resulting from either the impact of a meteoroid with a spacecraft or the explosive breakup of a meteoroid passing through the Earth's atmosphere.[2][3]
-
Coronal Mass Ejection (CME). A burst of plasma and accompanying magnetic field, ejected from the solar corona and released into the solar wind. Sometimes referred to as a Solar EMP.[4]
​
Types of (civil) man-made EMP event include:
-
Switching action of electrical circuitry, whether isolated or repetitive (as a pulse train).
-
Electric motors can create a train of pulses as the internal electrical contacts make and break connections as the armature rotates.
-
Gasoline engine ignition systems can create a train of pulses as the spark plugs are energized or fired.
-
Continual switching actions of digital electronic circuitry.
-
Power line surges. These can be up to several kilovolts, enough to damage electronic equipment that is insufficiently protected.
Types of military EMP include:
-
Nuclear electromagnetic pulse (NEMP), as a result of a nuclear explosion. A variant of this is the high altitude nuclear EMP (HEMP), which produces a secondary pulse due to particle interactions with the Earth's atmosphere and magnetic field.
-
Non-nuclear electromagnetic pulse (NNEMP) weapons.
​
Nuclear (NEMP) and high altitude nuclear (HEMP)
Main article: Nuclear electromagnetic pulse
​
A nuclear EMP is the abrupt pulse of electromagnetic radiation resulting from a nuclear explosion. The resulting rapidly changing electric fields and magnetic fields may couple with electrical/electronic systems to produce damaging current and voltage surges.
The intense gamma radiation emitted can also ionize the surrounding air, creating a secondary EMP as the atoms of air first lose their electrons and then regain them.
​
NEMP weapons are designed to maximize such EMP effects as the primary damage mechanism, and some are capable of destroying susceptible electronic equipment over a wide area.
​
An NEMP warhead designed to be detonated far above the Earth's surface is known as a high-altitude electromagnetic pulse (HEMP) device. The explosion releases a blast of gamma rays into the mid-stratosphere, which ionizes and the resultant energetic free electrons interact with the Earth's magnetic field to produce a much stronger EMP than is normally produced in the denser air at lower altitudes.
​
​
Non-nuclear electromagnetic pulse (NNEMP)
Non-nuclear electromagnetic pulse (NNEMP) is a weapon-generated electromagnetic pulse without use of nuclear technology. Devices that can achieve this objective include a large low-inductance capacitor bank discharged into a single-loop antenna, a microwave generator, and an explosively pumped flux compression generator. To achieve the frequency characteristics of the pulse needed for optimal coupling into the target, wave-shaping circuits and/or microwave generators are added between the pulse source and the antenna. Vircators are vacuum tubes that are particularly suitable for microwave conversion of high-energy pulses.[7]
​

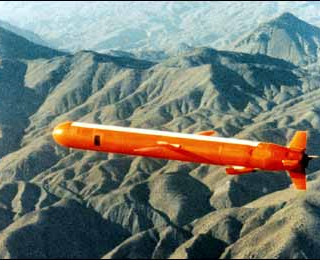

NNEMP generators can be carried as a payload of bombs, cruise missiles (such as the CHAMP missile) and drones, with diminished mechanical, thermal and ionizing radiation effects, but without the political consequences of deploying nuclear weapons.
​
The range of NNEMP weapons is much less than nuclear EMP. Nearly all NNEMP devices used as weapons require chemical explosives as their initial energy source, producing only 10−6 (one millionth) the energy of nuclear explosives of similar weight.[8]
The electromagnetic pulse from NNEMP weapons must come from within the weapon, while nuclear weapons generate EMP as a secondary effect.[9]These facts limit the range of NNEMP weapons, but allow finer target discrimination. The effect of small e-bombs has proven to be sufficient for certain terrorist or military operations.[citation needed]Examples of such operations include the destruction of electronic control systems critical to the operation of many ground vehicles and aircraft.[10][additional citation needed]
The concept of the explosively pumped flux compression generator for generating a non-nuclear electromagnetic pulse was conceived as early as 1951 by Andrei Sakharov in the Soviet Union,[11] but nations kept work on non-nuclear EMP classified until similar ideas emerged in other nations.
​
